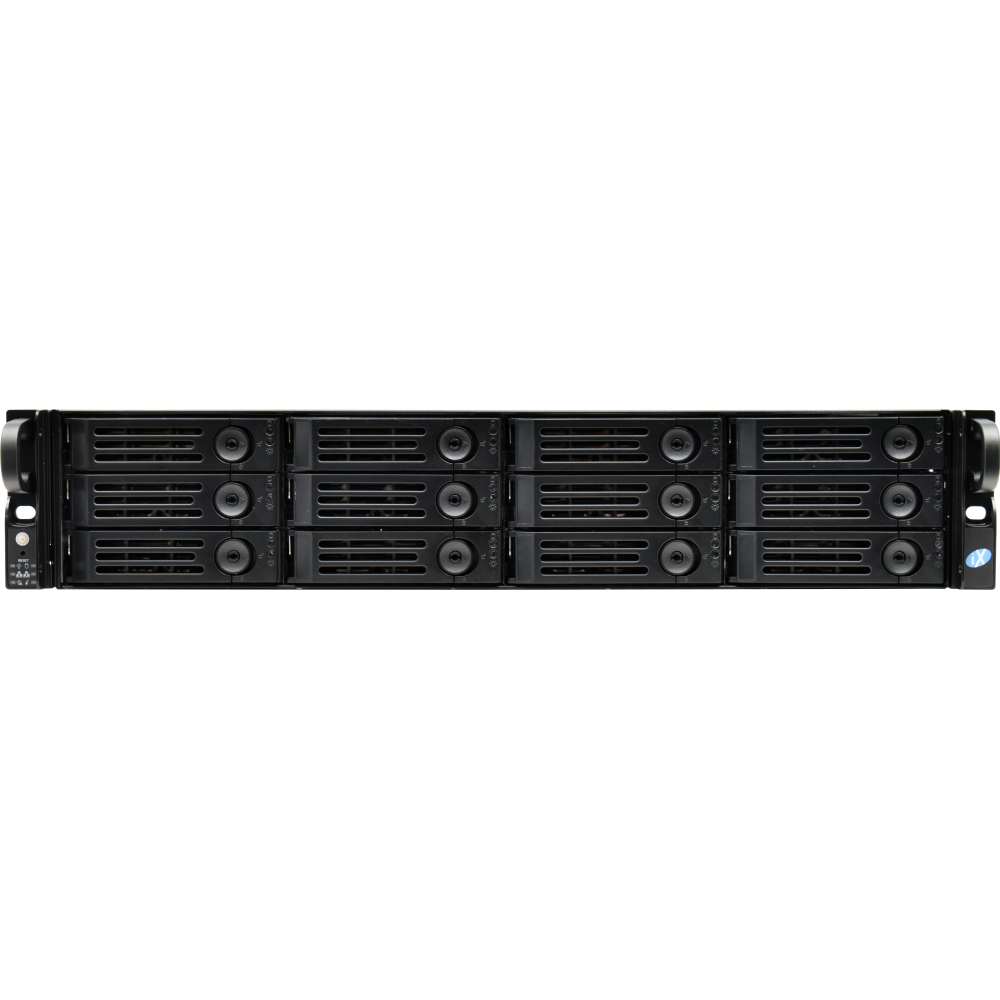

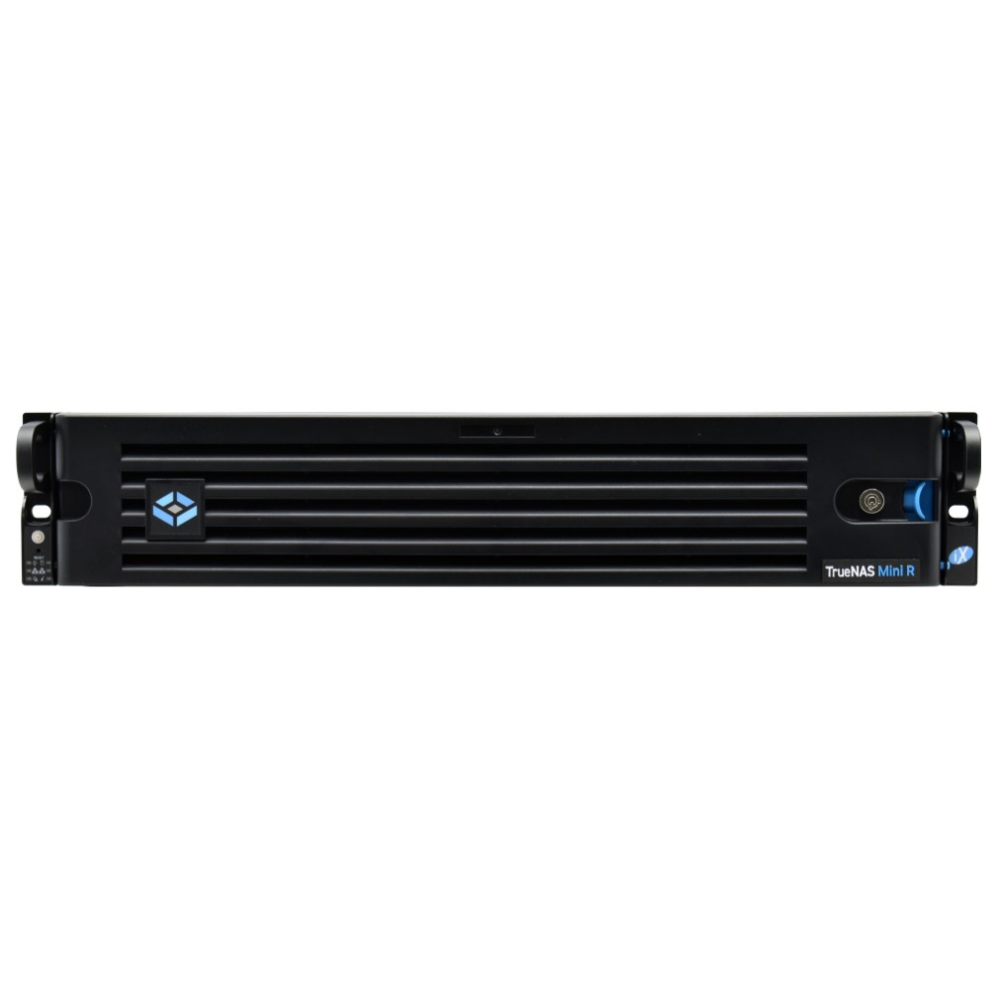

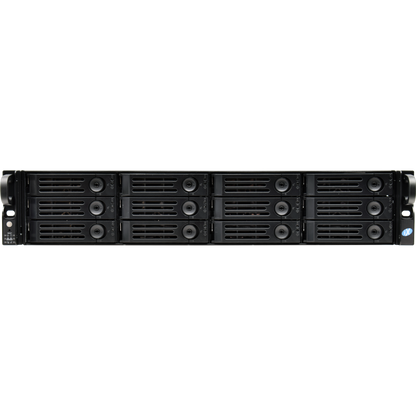

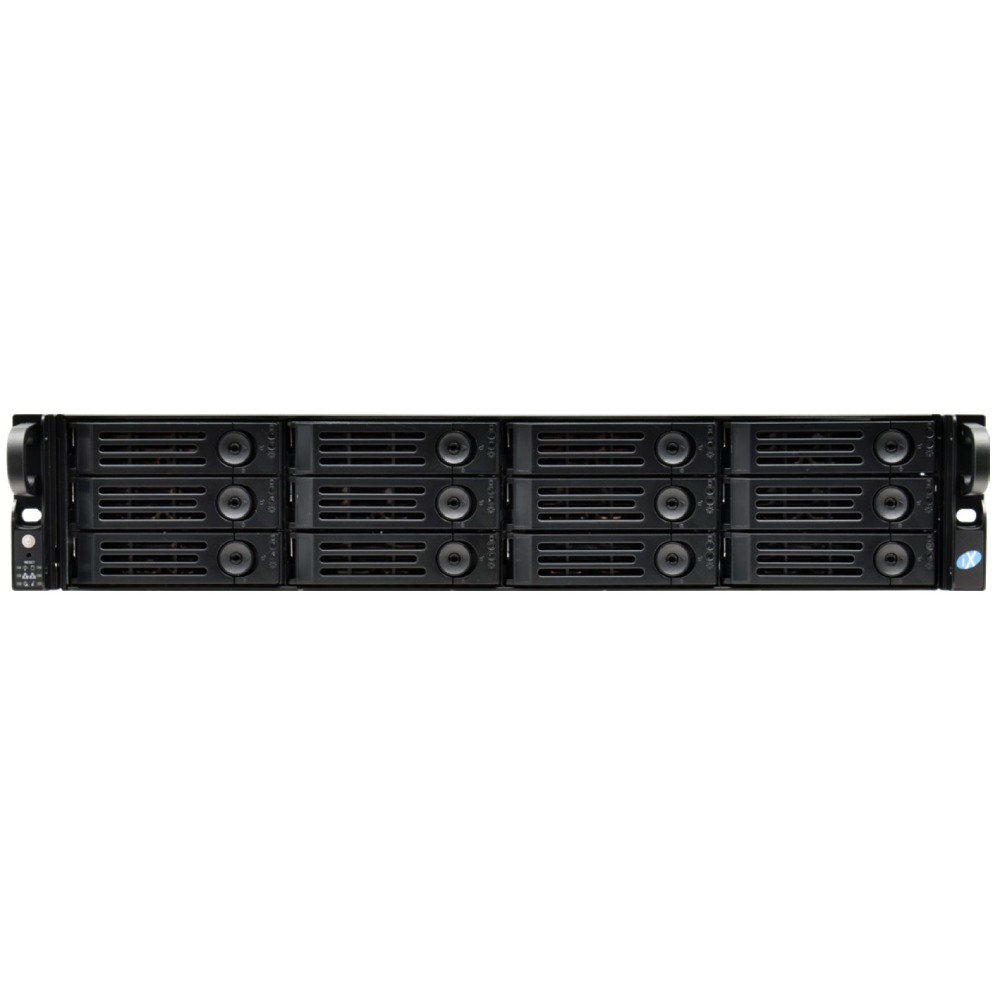

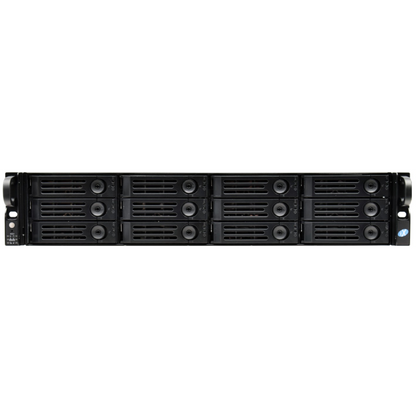

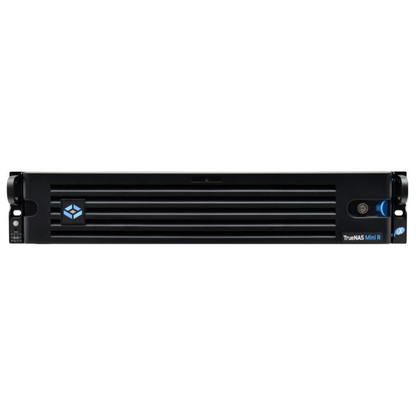

TrueNAS Mini
TrueNAS Mini R
TrueNAS Mini R
Regular price
14.499,00 zł
Regular price
Sale price
14.499,00 zł
Taxes included.
Quantity
Couldn't load pickup availability
The TrueNAS MINI R is a rack mounted enterprise-grade storage system designed for small offices and edge deployments. Powered by TrueNAS Community Edition software, it offers reliable and secure data storage with advanced ZFS file system features. With its quiet, low-power design and tool-less drive bays, the MINI R fits perfectly in environments where space and noise matter. It supports high-capacity hard drives and SSDs for flexible performance and redundancy. Ideal for backup, media storage, or virtualization, the TrueNAS MINI R delivers professional-grade storage in a small, affordable package.
Full Specifications
| FEATURES | TrueNAS Mini R |
| Chassis | 12 Bay Enclosure – Super Quiet Design |

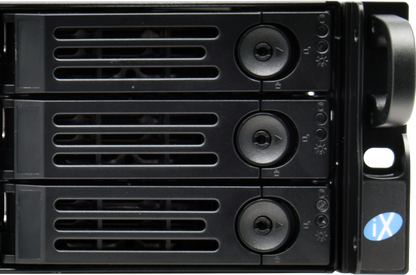

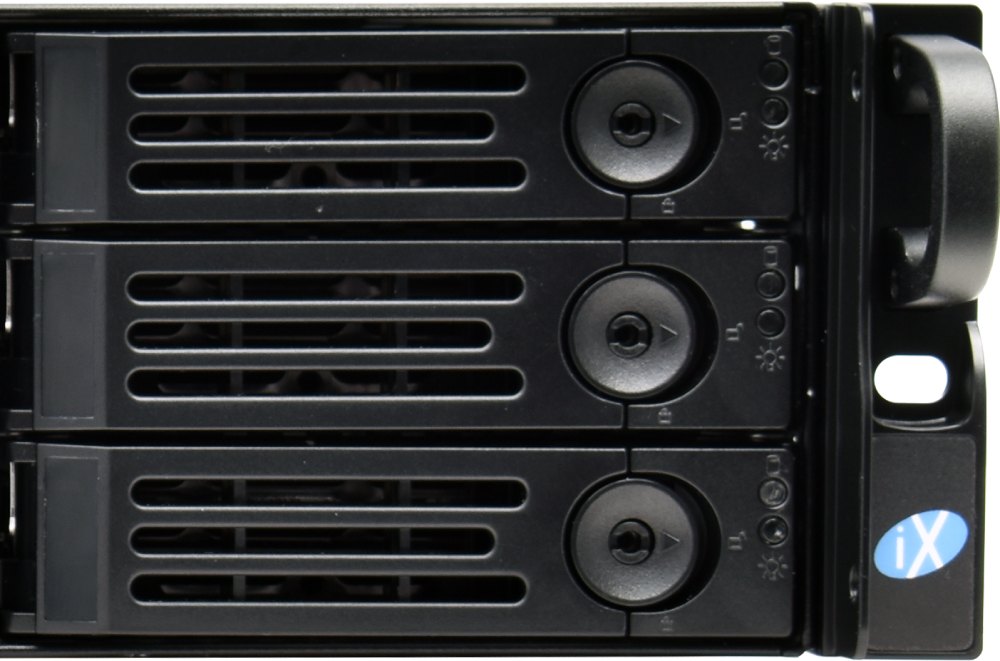

| Drive Bays | 12 x SATA 3.5” Hot-Swappable Drive Bays (Optional 3.5″ to 2.5″ adaptors available) |
| Maximum Raw Capacity | Up to 216 TB |
| CPU | Octa-core C3758 Intel CPU |
| Memory | 32 GB DDR4 with ECC |
| (Upgradeable to 64GB) | |
| RAID | OpenZFS – RAIDZ1 (RAID 5), RAIDZ2 (RAID 6), Multi-Disk Mirror (RAID 10), and RAID0 (stripe) |
| Disk Management | Hot-Swappable Drives, Bad Block Scan + HDD S.M.A.R.T |
| ISO Mounting Support, Hardware-Accelerated Disk Encryption | |
| Network | Standard: 2 x RJ45 1/10GBaseT Ethernet LAN ports |
| Dedicated RJ45 IPMI Port (Remote Hardware Management) | |
| 2 x SFP+ 10G Add On Card (Optional) | |
| USB Ports | 1 x USB 3.0 Port (Rear) |
| 2 x USB 2.0 Ports (Rear) | |
| Read/Write Cache | (Optional) Boost performance by adding a dedicated, high-performance read cache (L2ARC) or by adding a dedicated, high-performance write cache (ZIL/SLOG) |
| PCIe Expansion | 1 x PCI Express 3.0 x 4 |
| Power Supply | 100V to 240V AC, 50/60 HZ, Single Phase |
| Power Consumption (Maximum) | Diskless: 63W, |
| With drives & 10G Add-on-card: 167W | |
| Power Management | Remote Power-On/Off (IPMI), UPS Signal Response and Alerts |
| User Control Interface | Web Browser and Remote Hardware Management (IPMI) |
| Dimensions | 17.2″ x 21″ x 3.5″ / 437 × 533 × 89mm |
| (W x D x H) | |
| Weight | 18.7lbs / 8.5Kg |
| (no drives) | |
| Limited Warranty | 1-Year Warranty Included. Optional 3-Year Warranty purchasable. |
| Software Warranty requires registration at portal.ixsystems.com. | |
| Accessories | Basic Setup Guide, 2 x bezel keys, bag of HDD screws, 2 x 7 ft cat6 copper cable, Bezel, 4 x Adhesive Rubber Feet |
| Short Rail Kit – 19″ to 26.6″ rackmount depth | |
| Optional Long Rail Kit available – 26.5″ to 36.4″ rackmount depth |
